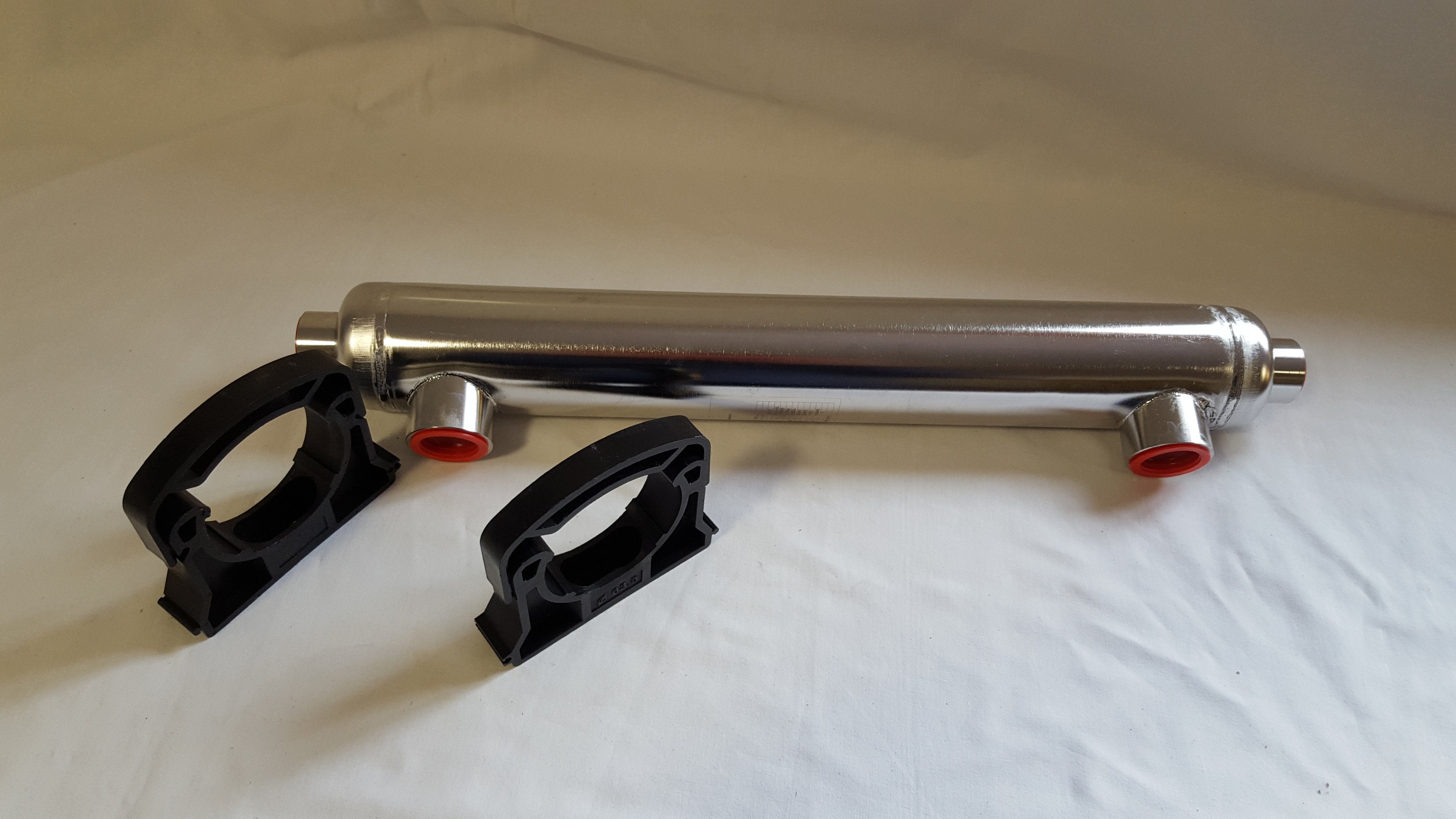

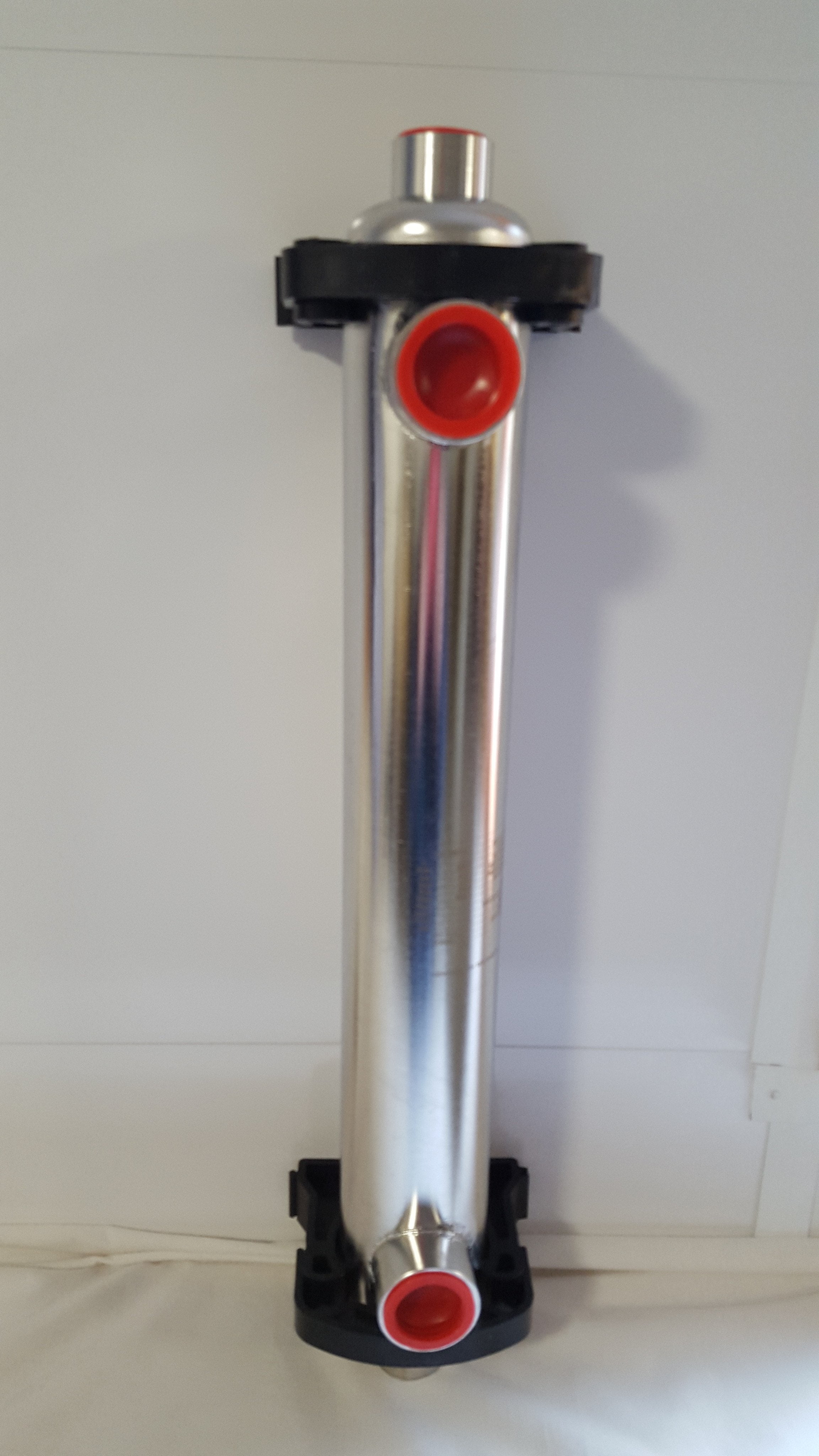

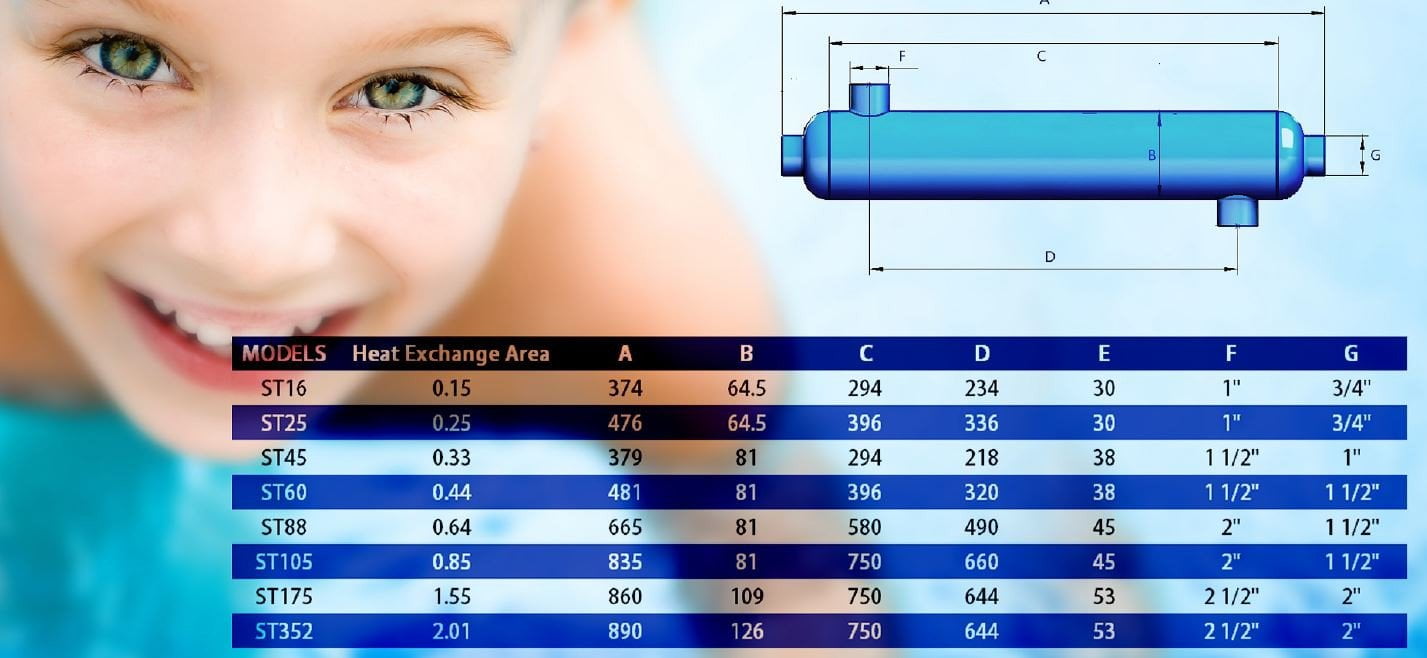

85,000 BTU Stainless Steel Tube and Shell Heat Exchanger for Pools/Spas ss

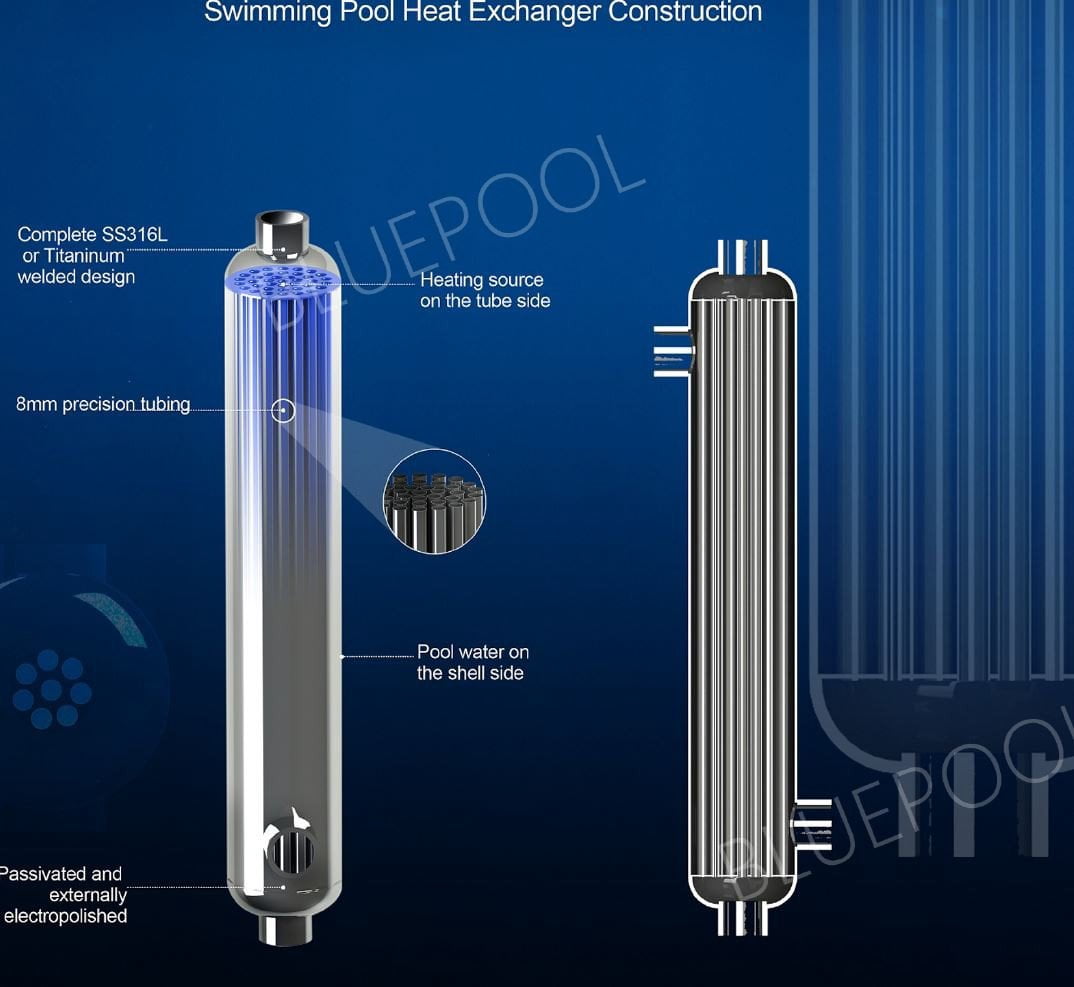

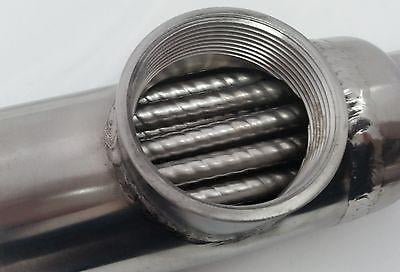

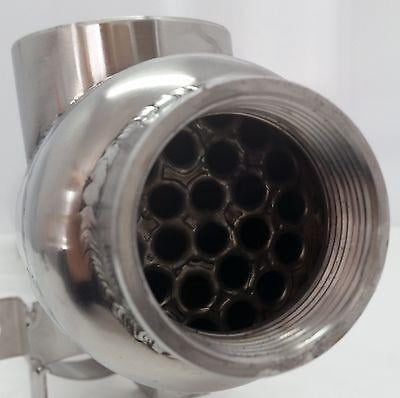

<h2 align="center"><strong><span style="text-decoration: underline;">85,000 BTU Stainless Steel Tube and Shell </span></strong></h2><h3 align="center">* Same Side Ports</h3><h3 align="center">* GPM Boiler Side – 8.27</h3><h3 align="center">* GPM Pool Side – 56.22</h3><h3 align="center">* Boiler Ports – 3/4" NPT</h3><h3 align="center">* Pool Ports – 1" NPT</h3><h3 style="text-align: center;"><strong>* Port to Port - 13 5/8"</strong></h3><h3 align="center">* Diameter – 2 1/2"</h3><h3 align="center">* Length – 19 3/8"</h3><h3 align="center">* Number of Tubes - 19</h3><h3 align="center">* PSI Drop Hot – 1.02</h3><h3 align="center">* PSI Drop Cold – 1.28</h3><h3 align="center">* Working Pressure - 80 PSI</h3><h3 align="center">* BTU rated with 180F Boiler and 80F Pool</h3><p align="center"></p><p align="center">This unit is suitable for pools/spas that are<strong>7,310</strong> gallons.</p><p align="center" style="text-align: left;">These heat exchangers are constructed with a stainless steel 316L shell and stainless steel 316L corrugated inner tubes to ensure high velocities inside the unit.</p><p align="center" style="text-align: left;">This is a very reliable, efficient and cost effective way to transfer heat indirectly between any boiler circuit and any pool or spa circuit.</p><p align="center" style="text-align: left;"></p><p align="center">The units are designed for both horizontal and vertical mounting. Port sizes:(to/from Boiler) 3/4" - (to/from Pool)1".</p><p align="center" style="text-align: left;">It is recommended to always install the unit with the mounting bracket (mounting brackets included with each unit) fixed to a wall, and/or ceiling or floor to prevent water hammer or vibrations which could damage the unit.</p><p align="center" style="text-align: left;"><strong>IMPORTANT!!</strong> Always install the Stainless Steel Pool &amp; Spa Heat Exchanger in a<u>counter flow pattern</u>.</p><p align="center" style="text-align: left;">The units should be installed<u>downstream of the filtration and pumping equipment</u>. The boiler water must be assisted and the usual precautions taken to prevent air locks.</p><p align="center" style="text-align: left;">The pool water pump should be controlled by a thermostat in the pool pipe work before the heat exchanger and set at the required temperature.</p><p align="center"><u><strong>Stainless Steel Pool and Spa Heat Exchangers are not suited for saline or salt water environments</strong></u>. For those applications please use one of our Titanium units.</p><p align="center"></p><div align="left"></div><p align="left"><strong>Note:</strong><br><span>1. For occasional (holidays &amp; weekends) use pools we recommend a 2x output multiplier to obtain a 2°F/hr heat up rate;</span><br><span>2. Nominal values are based on 60°C temperature between incoming heating and heated water.</span></p>
